For the modern home cinema enthusiast, the transition from traditional surround sound to "immersive audio" marks the most significant leap in fidelity since the introduction of high-definition video. We have moved past the era of simple 5.1 and 7.1 channel-based systems, entering a landscape defined by "objects" rather than "channels." At the forefront of this sonic revolution are two titans: Dolby Atmos and DTS:X.
While both technologies aim to place you inside a three-dimensional "bubble" of sound, they approach the problem with different philosophies. Dolby Atmos is the undisputed king of the streaming era, requiring specific height or overhead speakers to achieve its signature verticality. In contrast, DTS:X is the audiophileās flexible alternative; it doesnāt mandate specific speaker layouts and offers a significantly higher maximum bitrate (24.5 Mbps on Blu-ray vs. 18 Mbps for Atmos), potentially providing more raw audio detail for those with high-end physical media setups.
If you are building a home theater today, the choice isn't just about brand loyaltyāit's about how you consume your content and how much work youāre willing to do to your ceiling.
Understanding Object-Based Audio: Beyond 7.1
To appreciate why these formats are revolutionary, one must understand the shift from channel-based to object-based audio. In a traditional 5.1 setup, a sound engineer would assign a soundāsay, a helicopterāto the "Rear Left" channel. If you didn't have a speaker in that exact spot, the effect was lost or poorly approximated.
Object-based audio treats individual sounds as "objects" with specific coordinates in a 3D space. Instead of being told which speaker to play through, the sound object is accompanied by metadata that tells your AV receiver where that sound should be in the room. Your receiver then calculates, in real-time, which of your specific speakers should fire to place that sound accurately. This allows for a much more precise and fluid movement of sound, whether itās a raindrop falling from above or a car speeding past your ear.

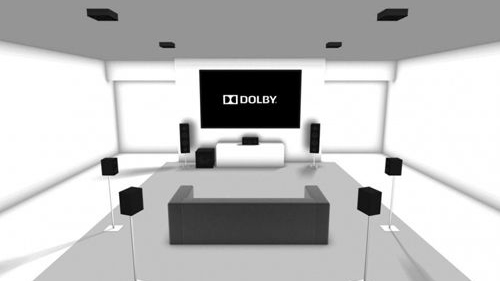

This technological leap ensures that whether you have a modest 5.1.2 setup or a massive 11.2.4 dedicated theater, the processor "scales" the audio to fit your specific environment, providing a level of realism that was previously the exclusive domain of commercial cinemas.
Dolby Atmos: The Streaming Standard
Dolby Atmos is the name most consumers recognize, and for good reason. Since its debut in the 2012 film Brave, it has become the de facto standard for immersive audio. The defining characteristic of Atmos is its focus on the "height" plane. By adding speakers above the listenerāeither mounted in the ceiling or integrated into floor-standing speakers as upward-firing driversāAtmos creates a true hemisphere of sound.
From a technical perspective, Atmos is incredibly versatile because it can be delivered in two ways. For streaming services like Netflix, Disney+, and Apple TV+, it uses a "lossy" format called Dolby Digital Plus. This allows for a rich 3D experience while keeping file sizes small enough for internet delivery. On physical 4K UHD Blu-ray discs, however, it uses Dolby TrueHD, a lossless format that delivers studio-quality audio.
The Height Requirement
One hurdle for many users is the hardware requirement. To experience Dolby Atmos as intended, you need a way to generate sound from above. This typically falls into two categories:
- In-Ceiling Speakers: The gold standard for precision.
- Atmos-Enabled Speakers/Soundbars: These use "upward-firing drivers" that bounce sound off your ceiling and back down to your listening position.
While purists will always argue for in-ceiling installations, modern soundbar technology has become remarkably adept at simulating this effect, making Atmos accessible to those who cannot (or will not) cut holes in their living room ceiling.
DTS:X: The Audiophileās Flexible Favorite
If Dolby is the dominant force in streaming, DTS:X is the challenger that prioritizes flexibility and raw data. Launched in 2015, DTS:X differs from Atmos in one major philosophical way: it does not require a specific speaker layout. While Atmos is designed with "height" as a mandatory component, DTS:X is "speaker-agnostic." It can take whatever speaker configuration you already haveābe it a standard 5.1 or a 7.1 setupāand use its object-based engine to create a more immersive soundstage without requiring you to add overhead channels.
However, the real draw for enthusiasts is the bitrate. On physical Blu-ray discs, DTS:X provides approximately 36% higher data throughput than Dolby Atmos. With a peak bitrate of 24.5 Mbps compared to the 18 Mbps found in Dolby TrueHD, DTS:X often provides a greater sense of "raw" audio detail and dynamic range.
Expert Tip: One of the most underrated features of DTS:X is its dialogue control. On supported hardware and discs, users can manually increase the volume of the "dialogue object" independently of the rest of the soundtrackāa godsend for those who struggle to hear speech over loud action sequences.
Despite these technical advantages, DTS:X has a significant hurdle: content availability. While Atmos is integrated into nearly 100% of major global streaming services, DTS:X adoption in the VOD (Video on Demand) market remains near 0%, outside of specialized IMAX Enhanced content appearing on platforms like Disney+.
Head-to-Head Comparison: Technical Breakdown
When we look at the cold, hard data, the "winner" often depends on whether you value ubiquity or raw technical potential.
| Feature | Dolby Atmos | DTS:X |
|---|---|---|
| Max Bitrate (Blu-ray) | 18 Mbps (Lossless TrueHD) | 24.5 Mbps (Lossless DTS-HD MA) |
| Streaming Support | Universal (Netflix, Disney+, etc.) | Near Zero (Specialized Only) |
| Speaker Requirements | Mandatory Height/Overhead | Flexible (Adapts to existing layout) |
| Core Delivery Method | Metadata atop DD+ or TrueHD | Metadata atop DTS-HD Master Audio |
| Primary Advantage | Industry-wide ecosystem | Higher bitrate & speaker flexibility |
From a hardware standpoint, the "format war" is largely over for the consumer. Most modern mid-to-high-end AV receivers and premium soundbars are format-agnostic. They are equipped with processors capable of decoding both Dolby Atmos and DTS:X, ensuring that no matter what disc or stream you play, you are getting the best possible version of that audio.
Choosing the Winner for Your Setup
The "best" format is ultimately dictated by your hardware and your viewing habits. Here is how I categorize the choice:
Scenario A: The Movie Night Streamer
If you watch 90% of your content via Netflix, Disney+, or Max, Dolby Atmos is your winner by default. It is the only immersive format these services currently support at scale. To get the most out of it, prioritize a soundbar or receiver with Atmos decoding and, if possible, upward-firing drivers.
Scenario B: The Blu-ray Collector & Purist
If you own a dedicated home theater and a library of 4K UHD Blu-rays, you will likely prefer DTS:X. The higher bitrate and the lack of compression provide a more visceral, cinematic experience that matches the visual fidelity of physical media. Films like Dune or Jurassic Park (in their respective 4K releases) showcase the sheer scale that these high-bitrate tracks can achieve.
Scenario C: The Budget-Conscious Upgrader
If you already have a high-quality 5.1 or 7.1 speaker system and don't want to install new height speakers or buy a new Atmos-enabled soundbar, DTS:X is your friend. It will maximize your existing hardware to create a 3D soundstage that feels more cohesive than traditional surround sound ever could.
FAQ
Q: Do I need new cables for Dolby Atmos or DTS:X? A: No, standard High-Speed HDMI cables (HDMI 2.0 or 2.1) are sufficient. However, your TV and receiver should both support eARC (Enhanced Audio Return Channel) to pass high-bitrate, lossless audio between devices.
Q: Can a regular 5.1 system play Dolby Atmos? A: Your receiver will "downmix" the Atmos signal to standard 5.1. You will hear the sound, but you will lose the "object-based" spatial precision and the height effects. To truly "hear" Atmos, you need at least a 5.1.2 configuration.
Q: Is IMAX Enhanced the same as DTS:X? A: IMAX Enhanced is a certification program that uses a special variant of the DTS:X codec. It is essentially the primary way DTS:X is currently making its way into the streaming world (notably on Disney+).
Elevate Your Home Cinema
The debate between Dolby Atmos and DTS:X is less about which sounds "better" and more about where you get your movies. If you want the convenience of streaming, lean into the Atmos ecosystem. If you demand the highest possible audio fidelity and enjoy the ritual of physical media, ensure your system is optimized for DTS:X.
